Aerospace Machining Fixtures for the Aerospace Industry

Common machining fixtures include milling fixtures, turning fixtures, drilling fixtures, welding fixtures, assembly fixtures, inspection fixtures, and modular workholding systems. In aerospace manufacturing, fixtures often combine precise locating points, rigid clamping, datum control, and access for machining or inspection. The right fixture type depends on the part geometry, tolerance requirements, production volume, material, and how the component will be processed.

The 3-2-1 rule is a fixture design method used to fully locate a part by restricting its six degrees of freedom. Three points establish the primary datum plane, two points locate the secondary plane, and one point controls the tertiary plane. This creates repeatable part positioning, improves machining consistency, and helps inspection results match the intended datum structure.

Aerospace machining fixtures are typically designed for tighter tolerances, more complex geometries, controlled documentation, and repeatable datum alignment. They may need to support first article inspection, traceable quality records, specialized materials, large structural parts, or delicate thin-wall components. Fixture rigidity, clamping strategy, accessibility, and inspection compatibility are all critical to maintaining part quality.

Yes. Douglas Machine & Engineering offers in-house design capabilities that can take a customer concept, develop a process, and produce a finished product. The team supports fixture planning, CNC machining, fabrication, AWS certified welding, inspection, finishing coordination, and installation-related support. This one-stop approach helps reduce separate purchase orders and keeps program responsibility centralized.

Douglas Machine & Engineering’s CNC machining capabilities support precise tolerances ranging from +/-.005 to +/-.0005 where required by the project. Final tolerance planning depends on the material, part size, geometry, finish requirements, and inspection method. The company also supports dimensional verification, CMM analysis through Exact Metrology, and first article inspection reporting when applicable.

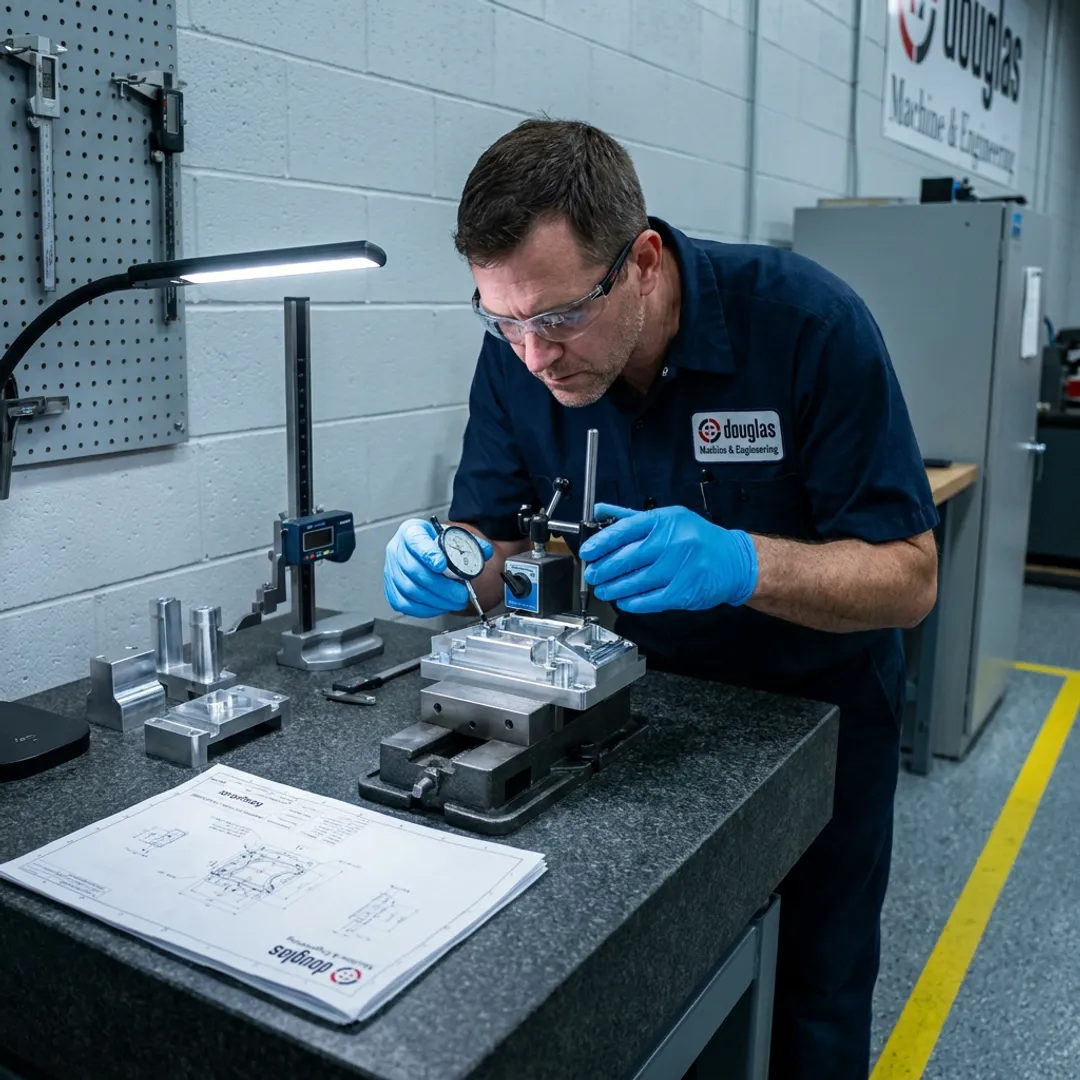

Many aerospace fixture programs require documentation to confirm dimensional accuracy, material compliance, and conformance to design intent. Douglas Machine & Engineering can support first article inspection reporting, CMM analysis, certified granite table checks, gauges, and quality documentation. These records help customers validate tooling before production use and support regulated aerospace or defense manufacturing requirements.

Yes. Douglas Machine & Engineering integrates finishing and outside processes into the project workflow. In-house paint, powder coating, and blasting are available, while plating and heat treat are coordinated through qualified partners. This helps fixture assemblies meet requirements for corrosion resistance, wear performance, hardness, durability, surface preparation, and long-term production use.

A single-source partner reduces risk by coordinating design, machining, fabrication, welding, inspection, finishing, and supplier-managed processes under one project workflow. This can lower transportation costs, reduce the need for multiple purchase orders, improve communication, and keep quality responsibility clear. Douglas Machine & Engineering emphasizes planning, timely issue resolution, and on-time delivery throughout the program.
